Bottom Bracket Prestine 68mm English to BB30/386EVO Crank Outboard Set PT6638S

Calculate Shipping

Flat Rate Regular Post - $0.00
CORONA VIRUS POSTAGE DELAYS: We are still dispatching stock as normal. However, due to the huge increase in on line shopping there are delays with Australia Post, especially in Victoria. Some regular post orders are taking up to 3 weeks to deliver. Check your tracking number to follow your order, the status may be "delayed". We ask for patience over this period as this is beyond our control and we are all in this together. Please note: Same day dispatch cut off time is now 1:30pm Adelaide time. Orders place after this time will be dispatched the next business day. Have a Safe and Happy Xmas and New Year, RAM Cycle Parts...

Flat Rate Express Post - $9.95 (ETA: 1 days)
CORONA VIRUS POSTAGE DELAYS: We are still dispatching stock as normal. However, due to the huge increase in on line shopping there are delays with Australia Post, especially in Victoria. Some regular post orders are taking up to 3 weeks to deliver. Check your tracking number to follow your order, the status may be "delayed". We ask for patience over this period as this is beyond our control and we are all in this together. Please note: Same day dispatch cut off time is now 1:30pm Adelaide time. Orders place after this time will be dispatched the next business day. Have a Safe and Happy Xmas and New Year, RAM Cycle Parts...

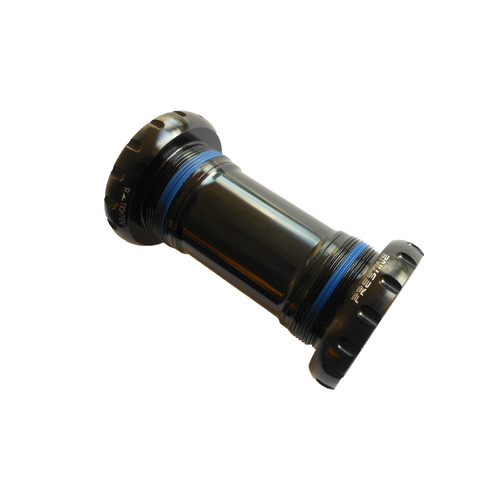

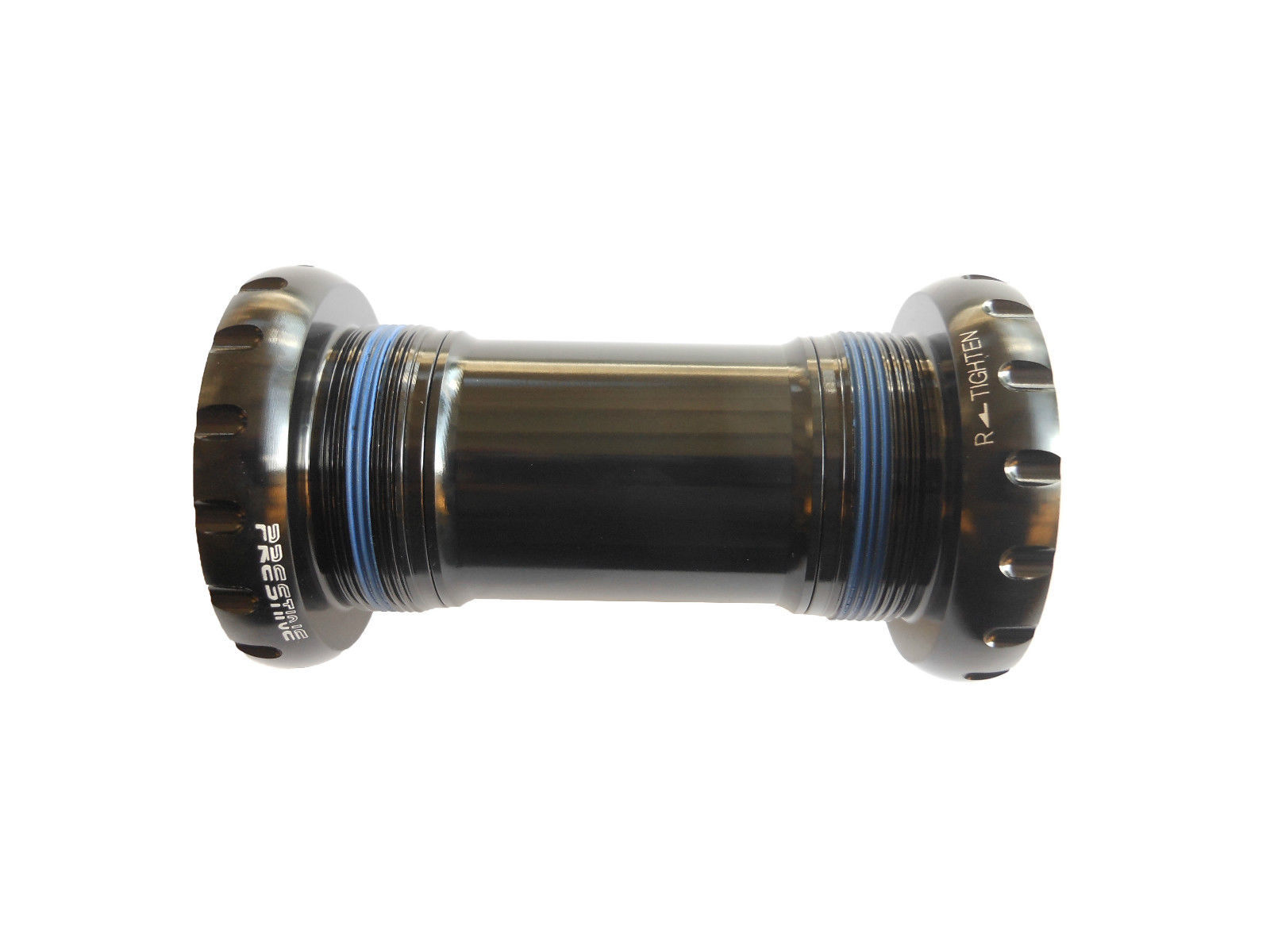

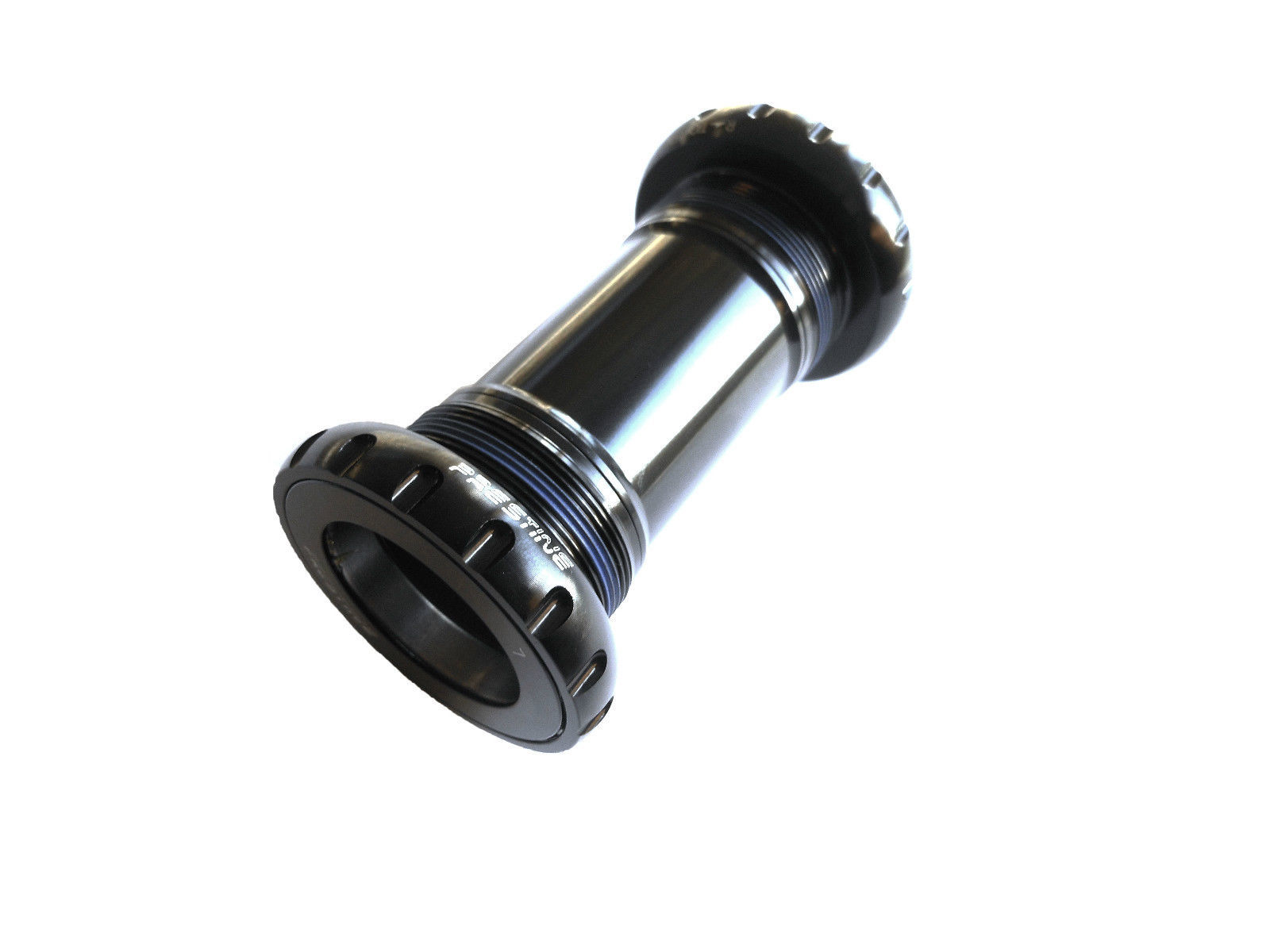

Quality BB30 Bottom Bracket Conversion set by Prestine of Taiwan. Allows use of 386EVO Cranks in English 68mm Bottom Bracket.
This set allows you to use many 386EVO cranks on standard BSA (ENGLISH) Frames.Each cup adds roughly 10mm in width which means your crank axle must be at least 88mm long > 68mm +10mm+10mm=88mm. Some listings will suggest this will allow the use of BB30 cranks but this is impossible as BB30 crank spindles are not long enough.

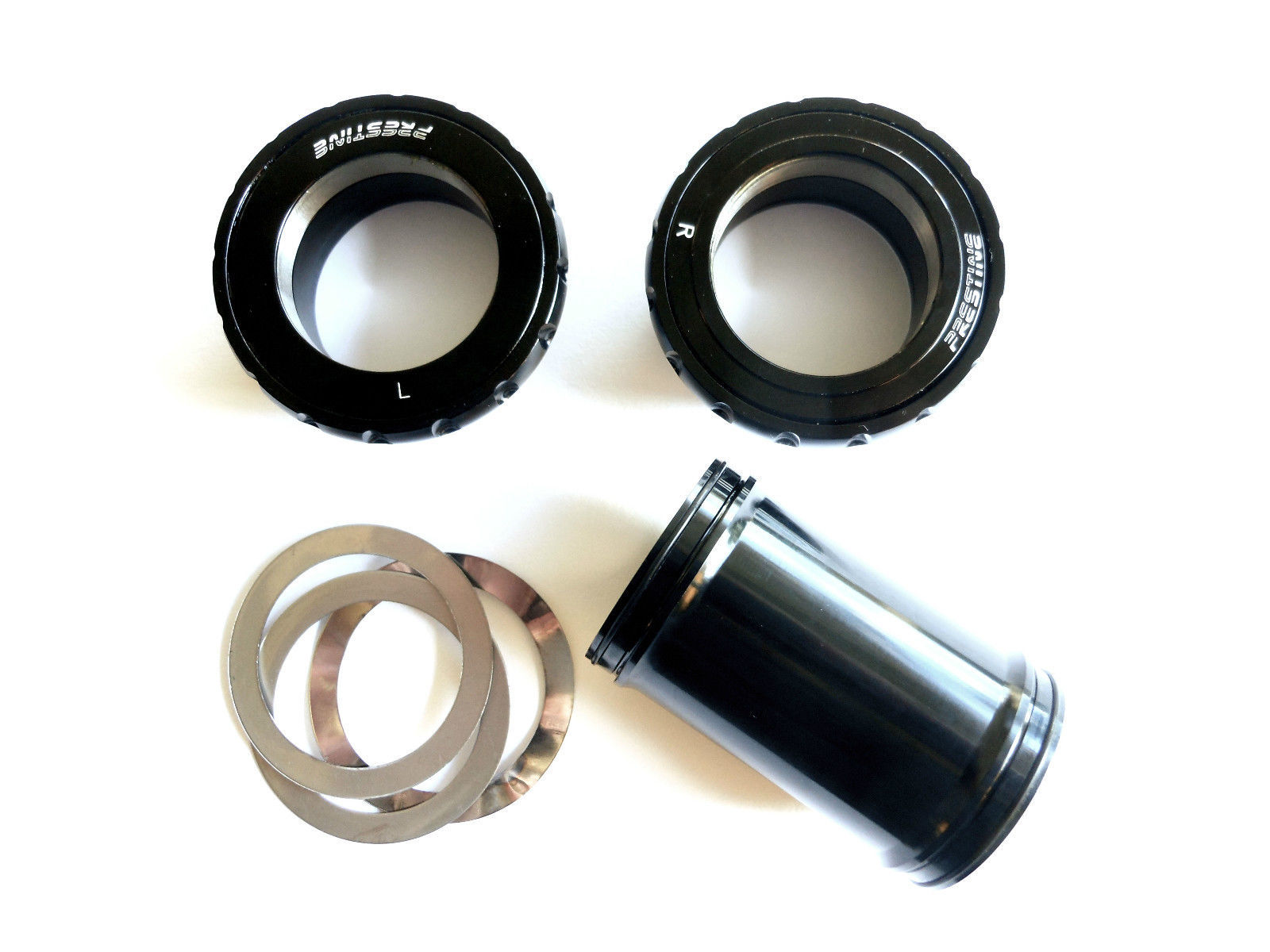

Double Sealed Cartridge Bearings, Anodised Alloy Housing, Plastic centre with O-rings, Spaces and wave washer.
WARNING: There is very little room in a 68mm Bottom Bracket to squeeze in a BB30 Style Crank, the inside ID of the bearing cups is approx 30.4mm so you have 0.20 clearance. If your Bottom Bracket is not square, there is a possibility of the crank shaft rubbing. Also, as these are much larger than normal outboard bearings, a standard bottom bracket tool does not fit. You will require a tool such a BBT-29 16 Spline Park Bottom Bracket Wrench..
Weight: 100 Grams.
